MHI RJ AVIATION ULC (TYPE CERTIFICATE PREVIOUSLY HELD BY BOMBARDIER, INC.):
Amendment 39-21377; Docket No. FAA-2020-0691; Product Identifier 2020-NM-064-AD.
|

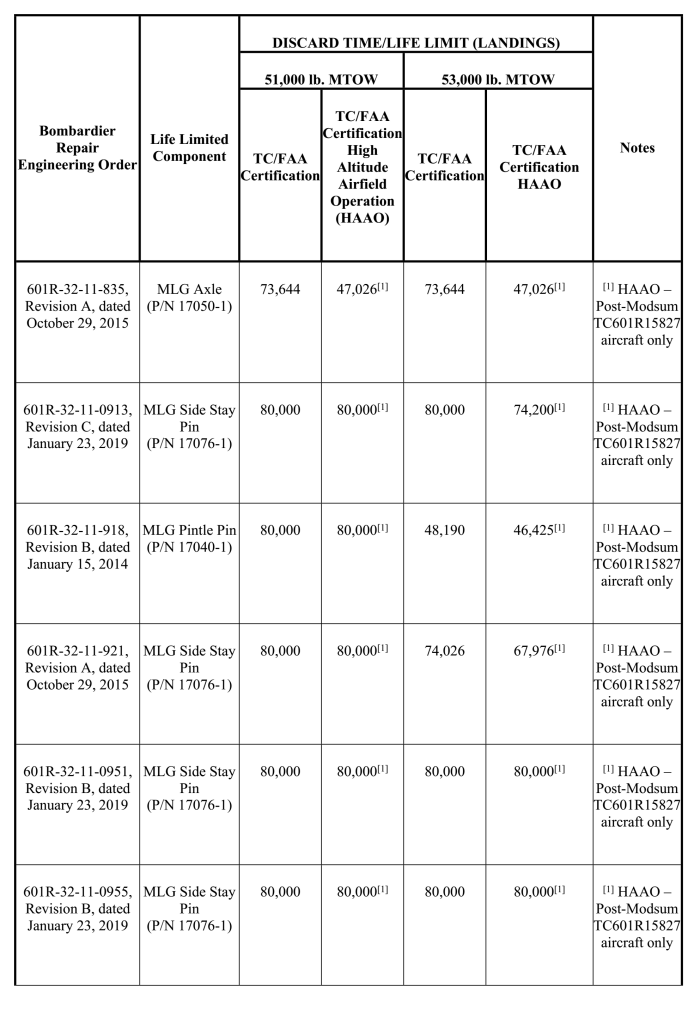

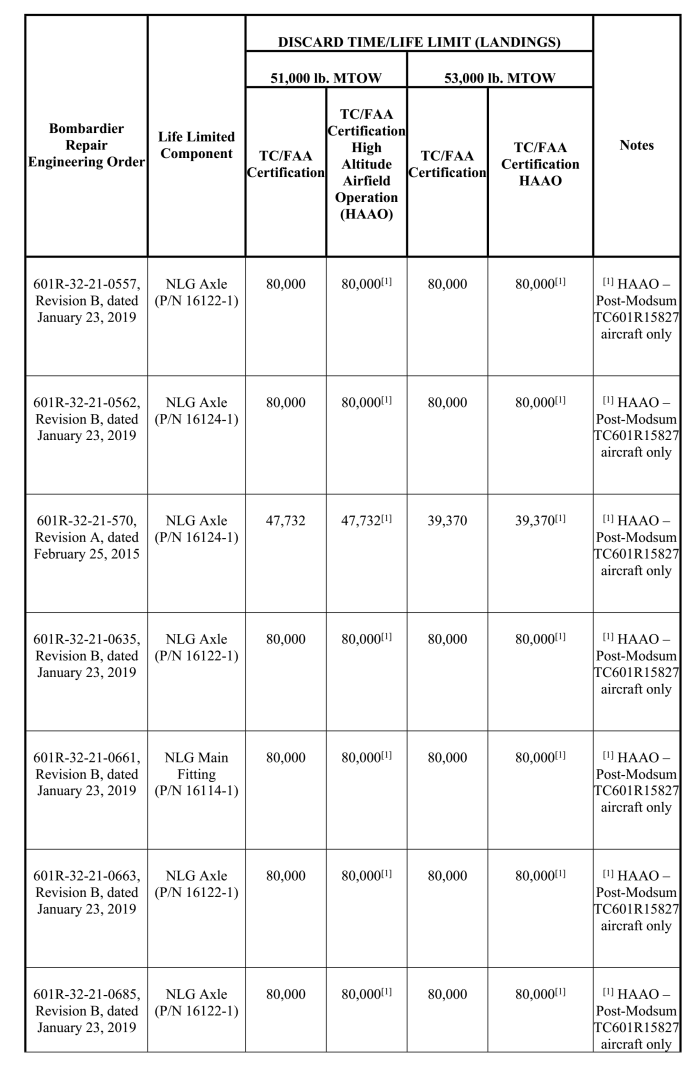

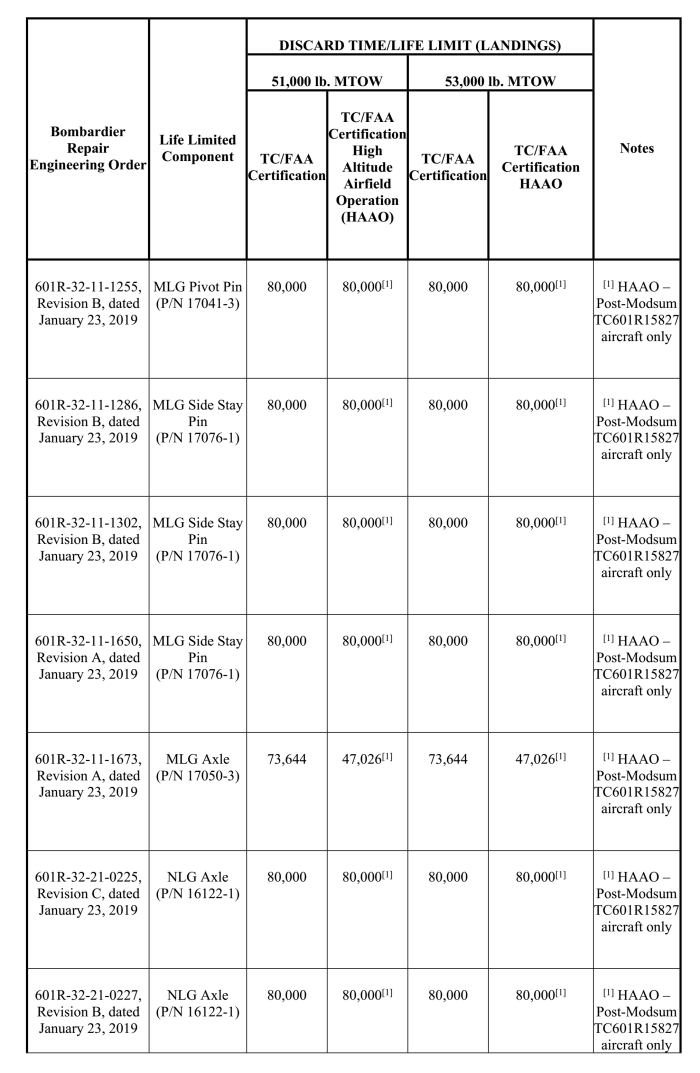

(a) EFFECTIVE DATE This airworthiness directive (AD) is effective March 30, 2021. (b) AFFECTED ADS None. (c) APPLICABILITY This AD applies to MHI RJ Aviation ULC (type certificate previously held by Bombardier, Inc.) Model CL-600-2B19 (Regional Jet Series 100 & 440) airplanes, certificated in any category, serial numbers 7003 through 8999 inclusive. (d) SUBJECT Air Transport Association (ATA) of America Code 32, Landing gear. (e) REASON This AD was prompted by evidence that a revised structural life limit of some components of the nose landing gear (NLG) and/or main landing gear (MLG) was not implemented during repair. The FAA is issuing this AD to address structural life limits that are lower than the life limits published in the Maintenance Requirements Manual (MRM), Part 2. This condition, if not corrected, could lead to the collapse of the affected NLG and/or MLG, possibly resulting in airplane damage and injury to the occupants. (f) COMPLIANCE Comply with this AD within the compliance times specified, unless already done. (g) VERIFICATION OF AIRPLANE OR TECHNICAL RECORDS Within 6 months from the effective date of this AD: Verify the airplane or technical records to determine if an NLG or MLG component listed in Table 1 or Table 2 of Bombardier Service Bulletin 601R-32 -112, dated November 11, 2019, is installed on the airplane. If this verification determines that an affected component listed in Table 1 or Table 2 of Bombardier Service Bulletin 601R-32-112, dated November 11, 2019, is installed on the airplane, perform the actions specified in paragraph (h) or (i) of this AD, as applicable. (h) INCORPORATION OF THE STRUCTURAL DEVIATION INSPECTION REQUIREMENTS (SDIR) LIFE LIMIT INTO THE EXISTING SDIR AIRPLANE DOCUMENT If the total flight cycles of the component is less than the revised SDIR life limit identified in figure 1 to paragraph (h) of this AD minus 2,000 flight cycles: Within 12 months after completing the actions specified in paragraph (g) of this AD, incorporate the applicable revised life limit of the affected component into the existing SDIR airplane document as specified in figure 1 to paragraph (h) of this AD. ILLUSTRATION FIGURE 1 TO PARAGRAPH (h) – REVISED SDIR LIFE LIMITS (SHEET 1 OF 11) ILLUSTRATION FIGURE 1 TO PARAGRAPH (h) – REVISED SDIR LIFE LIMITS (SHEET 2 OF 11) ILLUSTRATION FIGURE 1 TO PARAGRAPH (h) – REVISED SDIR LIFE LIMITS (SHEET 3 OF 11) ILLUSTRATION FIGURE 1 TO PARAGRAPH (h) – REVISED SDIR LIFE LIMITS (SHEET 4 OF 11) ILLUSTRATION FIGURE 1 TO PARAGRAPH (h) – REVISED SDIR LIFE LIMITS (SHEET 5 OF 11) ILLUSTRATION FIGURE 1 TO PARAGRAPH (h) – REVISED SDIR LIFE LIMITS (SHEET 6 OF 11) ILLUSTRATION FIGURE 1 TO PARAGRAPH (h) – REVISED SDIR LIFE LIMITS (SHEET 7 OF 11) ILLUSTRATION FIGURE 1 TO PARAGRAPH (h) – REVISED SDIR LIFE LIMITS (SHEET 8 OF 11) ILLUSTRATION FIGURE 1 TO PARAGRAPH (h) – REVISED SDIR LIFE LIMITS (SHEET 9 OF 11) ILLUSTRATION FIGURE 1 TO PARAGRAPH (h) – REVISED SDIR LIFE LIMITS (SHEET 10 OF 11) ILLUSTRATION FIGURE 1 TO PARAGRAPH (h) – REVISED SDIR LIFE LIMITS (SHEET 11 OF 11) (i) REPLACEMENT OF REPAIRED NLG AND/OR MLG COMPONENT If the total flight cycles of the component is equal to or more than the applicable revised SDIR life limit specified in figure 1 to paragraph (h) of this AD minus 2,000 flight cycles: Within 12 months or 2,000 flight cycles, whichever occurs first, after completing the actions specified in paragraph (g) of this AD, replace the affected component with a serviceable component. (j) PARTS INSTALLATION PROHIBITION As of the effective date of this AD, no person may install any component listed in Table 1 or Table 2 of Bombardier Service Bulletin 601R-32-112, dated November 11, 2019, on any airplane without first incorporating the actions specified in paragraph (h) or (i) of this AD, as applicable. (k) OTHER FAA AD PROVISIONS The following provisions also apply to this AD: (1) ALTERNATIVE METHODS OF COMPLIANCE (AMOCs): The Manager, New York ACO Branch, FAA, has the authority to approve AMOCs for this AD, if requested using the procedures found in 14 CFR 39.19. In accordance with 14 CFR 39.19, send your request to your principal inspector or local Flight Standards Office, as appropriate. If sending information directly to the manager of the certification office, send it to ATTN: Program Manager, Continuing Operational Safety, FAA, New York ACO Branch, 1600 Stewart Avenue, Suite 410, Westbury, NY 11590; telephone 516-228-7300; fax 516-794-5531. Before using any approved AMOC, notify your appropriate principal inspector, or lacking a principal inspector, the manager of the local Flight Standards Office. (2) CONTACTING THE MANUFACTURER: For any requirement in this AD to obtain instructions from a manufacturer, the instructions must be accomplished using a method approved by the Manager, New York ACO Branch, FAA; or Transport Canada Civil Aviation (TCCA); or MHI RJ Aviation ULC's TCCA Design Approval Organization (DAO). If approved by the DAO, the approval must include the DAO-authorized signature. (l) RELATED INFORMATION (1) Refer to Mandatory Continuing Airworthiness Information (MCAI) Canad- ian AD CF-2020-09, dated April 7, 2020, for related information. This MCAI may be found in the AD docket on the internet at https://www.regulations.gov by searching for and locating Docket No. FAA-2020-0691. (2) For more information about this AD, contact Andrea Jimenez, Aerospace Engineer, Airframe and Propulsion Section, FAA, New York ACO Branch, 1600 Stewart Avenue, Suite 410, Westbury, NY 11590; telephone 516-228 -7330; fax 516-794-5531; email 9-avs-nyaco-cos@faa.gov. (m) MATERIAL INCORPORATED BY REFERENCE (1) The Director of the Federal Register approved the incorporation by reference (IBR) of the service information listed in this paragraph under 5 U.S.C. 552(a) and 1 CFR part 51. (2) You must use this service information as applicable to do the actions required by this AD, unless this AD specifies otherwise. (i) Bombardier Service Bulletin 601R-32-112, dated November 11, 2019. (ii) [Reserved] (3) For service information identified in this AD, contact MHI RJ Aviation ULC, 12655 Henri-Fabre Blvd., Mirabel, Quebec, J7N 1E1 Canada; Widebody Customer Response Center North America toll-free telephone +1-844-272-2720 or direct-dial telephone +1-514-855-8500; fax +1-514 -855-8501; email thd.crj@mhirj.com; internet https://mhirj.com. (4) You may view this service information at the FAA, Airworthiness Products Section, Operational Safety Branch, 2200 South 216th St., Des Moines, WA. For information on the availability of this material at the FAA, call 206-231-3195. (5) You may view this service information that is incorporated by refer- ence at the National Archives and Records Administration (NARA). For information on the availability of this material at NARA, email fedreg.legal@nara.gov, or go to: https://www.archives.gov/federal -register/cfr/ibr-locations.html. Issued on December 28, 2020. Lance T. Gant, Director, Compliance & Airworthiness Division, Aircraft Certification Service. FOR FURTHER INFORMATION CONTACT: Andrea Jimenez, Aerospace Engineer, Airframe and Propulsion Section, FAA, New York ACO Branch, 1600 Stewart Avenue, Suite 410, Westbury, NY 11590; telephone 516-228-7330; fax 516- 794-5531; email 9-avs-nyaco-cos@faa.gov.
