2008-26-10	CESSNA AIRCRAFT COMPANY: ( c o r r e c t i o n ) Amendment 39-15776; Docket No. FAA-2008-1328; Directorate Identifier 2008-CE-066-AD.

TDATA NOTE: The FAA incorrectly listed  model 188  in the Preamble.  Under
            the Unsafe Condition section, paragraph (e) should be (d). The
            address number should be 1801 not 1804 in paragraph (f)(2) and
            in Figure 1. This copy reflects the correction.

EFFECTIVE DATE

(a) This AD becomes effective on January 5, 2009.

AFFECTED ADS

(b) This AD relates to AD 98-01-01, Amendment 39-10287 and AD  2008-10-02,
    Amendment 39-15508.  These ADs  can be  found on  the Internet  at the
    following Web site: http://rgl.faa.gov/.

APPLICABILITY

(c) This AD applies to all  serial numbers (S/Ns) of the airplanes  listed
    in Table 1 of this AD, certificated in any category, that:

(1) Were initially  delivered from  the manufacturer  between  January  1,
    1993, and March 31,  2008, unless the modification/rework  required in
    AD 2008-10-02 has been done and you remain in compliance with that AD;
    or

(2) Have a  part number (P/N)  2013142-18 installed as  a replacement part
    anytime after January 1, 1993, unless the modification/rework required
    in AD 2008-10-02 has been done and you remain in compliance with  that
    AD.

NOTE 1: The affected part was shipped from Cessna Parts Distribution (CPD)
between January 1, 1993, and March 31, 2008.

NOTE 2: P/N 2013142-18 replaced P/Ns 2013142-9, -13, and -17.

                    TABLE 1--APPLICABLE AIRPLANE MODELS
    ______________________________________________________________________
                                    MODELS
    ______________________________________________________________________
    172                         F172K                          177
    172A                        F172L                          177A
    172B                        F172M                          177B
    172C                        F172N                          177RG
    172D                        F172P                          F177RG
    172E                        FR172E                         180
    172F (USAF T-41A)           FR172F                         180A
    172G                        FR172G                         180B
    172H (USAF T-41A)           FR172H                         180C
    172I                        FR172J                         180D
    172K                        FR172K                         180E
    172L                        P172D                          180F
    172M                        R172E (USAF T-41B)             180G
                                (USAF T-41C and D)
    172N                        R172F (USAF T-41)              180H
    172P                        R172G (USAF T-41C or D)        180J
    172Q                        R172H (USAF T-41D)             180K
    172R                        R172J                          182
    172S                        R172K                          182A
    F172D                       172RG                          182B
    F172E                       175                            182C
    F172F                       175A                           182D
    F172G                       175B                           182E
    F172H                       175C                           182F
    182G                        A185F                          U206D
    182H                        206                            U206E
    182J                        206H                           U206F
    182K                        P206                           U206G
    182L                        P206A                          207
    182M                        P206B                          207A
    182N                        P206C                          T207
    182P                        P206D                          T207A
    182Q                        P206E                          208
    182R                        T206H                          208B
    182S                        TP206A                         210
    182T                        TP206B                         210A
    F182P                       TP206C                         210B
    F182Q                       TP206D                         210C
    FR182                       TP206E                         210D
    R182                        TU206A                         210E
    T182                        TU206B                         210F
    T182T                       TU206C                         210G
    TR182                       TU206D                         210H
    185                         TU206E                         210J
    185A                        TU206F                         210K
    185B                        TU206G                         210L
    185C                        U206                           210M
    185D                        U206A                          210N
    185E                        U206B                          210R
    A185E                       U206C                          210-5 (205)
    210-5A (205A)               FT337F
    T210F                       M337B (USAF 02A)
    T210G                       T337B
    T210H                       T337C
    T210J                       T337D
    T210K                       T337E
    T210L                       T337F
    T210M                       T337H
    T210N                       T337H-SP
    T210R
    T303
    336
    337
    337A (USAF 02B)
    337B
    337C
    337D
    337E
    337F
    337G
    337H
    F337E
    F337F
    F337G
    F337H
    FT337E
    ______________________________________________________________________

UNSAFE CONDITION

(d) This AD is the result of reports of improper installation of the  part
    number  identification  placard  on the  alternate  static  air source
    selector  valve.  We  are   issuing  this  AD  to   prevent  erroneous
    indications  from   the  altimeter,   airspeed,  and   vertical  speed
    indicators, which could cause the  pilot to react to incorrect  flight
    information and possibly result in loss of control.

COMPLIANCE

(e) To  address this  problem, you  must do  the following, unless already
    done. A person  authorized to perform  maintenance as specified  in 14
    CFR section  43.3 of  the Federal  Aviation Administration Regulations
    (14 CFR 43.3) is required to do all the actions required in this AD.

    ______________________________________________________________________


    ACTIONS » » »

    (1) For all affected airplanes that are not equipped for flight  under
        instrument flight  rules (IFR):  Inspect the  alternate static air
        source   selector   valve   to  assure   that   the   part  number
        identification placard is not obstructing the port.

                COMPLIANCE » » »

                Within  the  next 100  hours  time-in-service (TIS)  after
                January 5, 2009 (the effective date of this AD) or  within
                the next  4 months  after January  5, 2009  (the effective
                date of this AD), whichever occurs first.

                            PROCEDURES » » »

                            Following  the  procedures  in  Cessna  Single
                            Engine Service  Bulletin SB08-34-02,  Revision
                            1,  dated  October  6,  2008;  Cessna  Caravan
                            Service  Bulletin CAB08-4,  Revision 1,  dated
                            October 6, 2008; Cessna Single Engine  Service
                            Bulletin SEB08-5, dated  October 13, 2008;  or
                            Cessna Multi-engine Service Bulletin  MEB08-6,
                            dated October 13, 2008, as applicable.

    ______________________________________________________________________


    ACTIONS » » »

    (2) For  all affected  airplanes that  are equipped  for flight  under
        instrument flight rules (IFR):

    (i) Inspect the alternate static  air source selector valve to  assure
        that the part number identification placard is not obstructing the
        port; or

    (ii) Fabricate a placard that incorporates the following words  (using
         at  least  1/8-inch  letters) and  install  this  placard on  the
         instrument panel within the pilot’s clear view: "IFR OPERATION IS
         PROHIBITED"  and  "USE  OF THE  ALTERNATE  STATIC  AIR SOURCE  IS
         PROHIBITED."

                COMPLIANCE » » »

                (A) Inspect within the next 10 days after January 5,  2009
                    (the effective date of this AD); or

                (B) Install placards  before further flight  after January
                    5, 2009 (the effective date of this AD).

                            PROCEDURES » » »

                            Following  the  procedures  in  Cessna  Single
                            Engine Service  Bulletin SB08-34-02,  Revision
                            1,  dated  October  6,  2008;  Cessna  Caravan
                            Service  Bulletin CAB08-4,  Revision 1,  dated
                            October 6, 2008; Cessna Single Engine  Service
                            Bulletin SEB08-5, dated  October 13, 2008;  or
                            Cessna Multi-engine Service Bulletin  MEB08-6,
                            dated October 13, 2008, as applicable.

    ______________________________________________________________________


    ACTIONS » » »

    (3) For  all affected  airplanes that  are equipped  for flight  under
        instrument  flight  rules  (IFR): If  placards  were  installed in
        accordance  with  paragraph  (e)(2)(ii) of  this  AD,  inspect the
        alternate static air source selector valve to assure that the part
        number identification placard is not obstructing the port.

                COMPLIANCE » » »

                Within the next 100 hours  TIS after January 5, 2009  (the
                effective date  of this  AD) or  within the  next 4 months
                after January  5, 2009  (the effective  date of  this AD),
                whichever occurs first. After doing the inspection, remove
                the  placards  installed  in  accordance  with   paragraph
                (e)(2)(ii) of this AD before further flight.

                            PROCEDURES » » »

                            Following  the  procedures  in  Cessna  Single
                            Engine Service  Bulletin SB08-34-02,  Revision
                            1,  dated  October  6,  2008;  Cessna  Caravan
                            Service  Bulletin CAB08-4,  Revision 1,  dated
                            October 6, 2008; Cessna Single Engine  Service
                            Bulletin SEB08-5, dated  October 13, 2008;  or
                            Cessna Multi-engine Service Bulletin  MEB08-6,
                            dated October 13, 2008, as applicable.

    ______________________________________________________________________


    ACTIONS » » »

    (4) For  all affected  airplanes: If  the alternate  static air source
        selector  valve  port  is  found  obstructed  by  the  part number
        identification   placard   during  the   inspection   required  in
        paragraphs (e)(1), (e)(2)(i),  and (e)(3) of  this AD, remove  the
        placard from the valve body, discard the placard, and assure  that
        the port is open and unobstructed.

                COMPLIANCE » » »

                Before  further flight  after the  inspection required  in
                paragraphs (e)(1), (e)(2)(i), and (e)(3) of this AD.

                            PROCEDURES » » »

                            Following  the  procedures  in  Cessna  Single
                            Engine Service  Bulletin SB08-34-02,  Revision
                            1,  dated  October  6,  2008;  Cessna  Caravan
                            Service Bulletin  CAB08-04, Revision  1, dated
                            October 6, 2008; Cessna Single Engine  Service
                            Bulletin SEB08-5, dated  October 13, 2008;  or
                            Cessna Multi-engine Service Bulletin  MEB08-6,
                            dated October 13, 2008, as applicable.

    ______________________________________________________________________


    ACTIONS » » »

    (5) For all  affected airplanes: When  a replacement valve  is needed,
        only install a P/N 2013142-18 alternate static air source selector
        valve that  has been  inspected and  the port  is found  free from
        obstruction.

                COMPLIANCE » » »

                As of 10 days after January 5, 2009 (the effective date of
                this AD).

                            PROCEDURES » » »

                            A person authorized to perform maintenance  as
                            specified  in  14  CFR  section  43.3  of  the
                            Federal  Aviation  Administration  Regulations
                            (14   CFR  43.3)   is  required   to  do   the
                            inspection.

    ______________________________________________________________________

(f) Report to the  FAA the results of  the inspection required by  this AD
    where an obstruction was found.

(1) Submit  this report  within 10  days after  the inspection  or 10 days
    after the effective date of this AD, whichever occurs later.

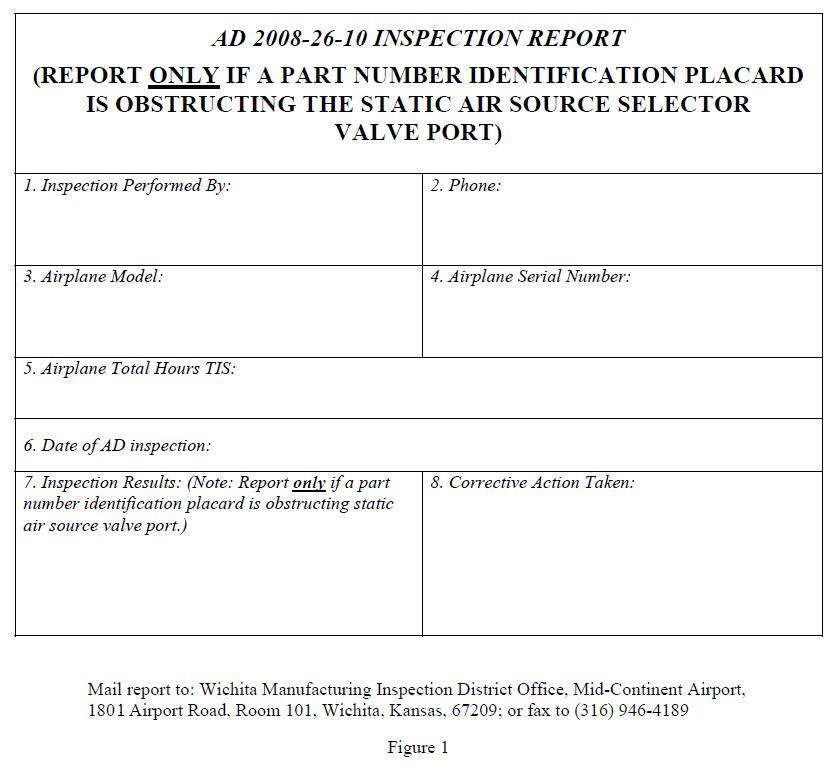

(2) Use  the  form  in  Figure  1  of  this  AD  and  submit  it  to  FAA,
    Manufacturing Inspection District Office, Mid-Continent Airport,  1801
    Airport Road,  Room 101,  Wichita, Kansas  67209; or  fax to (316) 946
    -4189.

(3) The  Office of  Management and  Budget (OMB)  approved the information
    collection  requirements  contained  in  this  regulation  under   the
    provisions of the Paperwork Reduction  Act of 1980 (44 U.S.C.  3501 et
    seq.) and assigned OMB Control Number 2120-0056.

                        ILLUSTRATION (Figure 1)

ALTERNATIVE METHODS OF COMPLIANCE (AMOCS)

(g) The Manager, Wichita Aircraft Certification Office (ACO), FAA, has the
    authority  to  approve  AMOCs  for this  AD,  if  requested  using the
    procedures  found in  14  CFR  39.19. Send  information  to  ATTN: Ann
    Johnson, Aerospace Engineer, FAA, Wichita ACO, 1801 Airport Road, Room
    100,  Wichita,  Kansas 67209;  telephone:  316-946-4105; fax:  316-946
    -4107; e-mail address: ann.johnson@faa.gov. Before using any  approved
    AMOC  on  any  airplane  to  which  the  AMOC  applies,  notify   your
    appropriate  principal  inspector  (PI) in  the  FAA  Flight Standards
    District Office (FSDO), or lacking a PI, your local FSDO.

(h) AMOCs approved for AD 2008-10-02 are approved for this AD.

MATERIAL INCORPORATED BY REFERENCE

(i) You must  use  Cessna  Single  Engine  Service  Bulletin,  SB08-34-02,
    Revision 1,  dated October  6, 2008;  Cessna Caravan  Service Bulletin
    CAB08-4,  Revision 1,  dated  October  6, 2008;  Cessna Single  Engine
    Service Bulletin  SEB08-5, dated  October 13,  2008; and  Cessna Multi
    -engine Service Bulletin  MEB08-6, dated October 13, 2008,  to  do the
    actions required by this AD, unless the AD specifies otherwise.

(1) The  Director of  the Federal  Register approved  the incorporation by
    reference of this service information under 5 U.S.C. 552(a) and 1  CFR
    part 51.

(2) For service information identified in this AD, contact Cessna Aircraft
    Company, P.O. Box  7704, Wichita, Kansas  67277;  telephone: (800) 423
    -7762 or (316) 517-6056; Internet: http://www.cessna.com.

(3) You may  review copies  at  the  FAA, Central  Region, Office  of  the
    Regional Counsel, 901 Locust, Kansas  City, Missouri 64106; or at  the
    National Archives and  Records Administration (NARA).  For information
    on the availability of this material at NARA, call 202-741-6030, or go
    to:
    http://www.archives.gov/federal_register/code_of_federal_regulations/i
    br_locations.html.

Issued in Kansas City, Missouri, on December 15, 2008. Kim Smith, Manager,
Small Airplane Directorate, Aircraft Certification Service.

FOR FURTHER  INFORMATION CONTACT:  Ann Johnson,  Aerospace Engineer,  FAA,
Wichita  Aircraft  Certification  Office,  1801  Airport  Road,  Room 100,
Wichita, Kansas 67209; telephone: 316-946-4105; fax: 316-946-4107;  e-mail
address: ann.johnson@faa.gov.

PREAMBLE

AGENCY: Federal Aviation Administration (FAA), DOT.

ACTION: Final rule; request for comments.

SUMMARY: The FAA is adopting a new airworthiness directive (AD) for certain Cessna Aircraft Company (Cessna) 172, 175, 177, 180, 182, 185, 206, 207, 208, 210, 303, 336, and 337 series airplanes. This AD requires you to inspect the alternate static air source selector valve to assure that the part number identification placard does not obstruct the alternate static air source selector valve port. If the part number identification placard obstructs the port, this AD also requires you to remove the placard, assure that the port is unobstructed, and report to the FAA if obstruction is found. This AD results from reports of airplanes found with alternate static air source selector valve port obstruction caused by improper installation of the part number identification placard. The actions specified by this AD are intended to prevent erroneous indications from the altimeter, airspeed, and vertical speed indicators, which could cause the pilot to react to incorrect flight information and possibly result in loss of control.

DATES: This AD becomes effective on January 5, 2009.
On January 5, 2009, the Director of the Federal Register approved the incorporation by reference of certain publications listed in this AD.
We must receive any comments on this AD by February 23, 2009.

ADDRESSES: Use one of the following addresses to comment on this AD.
Federal eRulemaking Portal: Go to http:// www.regulations.gov. Follow the instructions for submitting comments.
Fax: (202) 493-2251.
Mail: U.S. Department of Transportation, Docket Operations, M-30, West Building Ground Floor, Room W12-140, 1200 New Jersey Avenue, SE., Washington, DC 20590.
Hand Delivery: U.S. Department of Transportation, Docket Operations, M-30, West Building Ground Floor, Room W12-140, 1200 New Jersey Avenue, SE., Washington, DC 20590, between 9 a.m. and 5 p.m., Monday through Friday, except Federal holidays.
To get the service information identified in this AD, contact Cessna Aircraft Company, P.O. Box 7704, Wichita, Kansas 67277; telephone: (800) 423-7762 or (316) 517-6056; Internet: http:// www.cessna.com.
To view the comments to this AD, go to http://www.regulations.gov. The docket number is FAA-2008-1328; Directorate Identifier 2008-CE-066- AD.

FOR FURTHER INFORMATION CONTACT: Ann Johnson, Aerospace Engineer, FAA, Wichita Aircraft Certification Office, 1801 Airport Road, Room 100, Wichita, Kansas 67209; telephone: 316-946-4105; fax: 316-946-4107; e- mail address: ann.johnson@faa.gov.

SUPPLEMENTARY INFORMATION:

Discussion

Reports of improper installation of the part number (P/N) identification placard on P/N 2013142-18 alternate static air source selector valves prompted us to issue AD 98-01-01, Amendment 39-10286 (63 FR 3455, January 23, 1998), which applies to certain Cessna Aircraft Company (Cessna) Models 172R and 182S airplanes, and AD 2008- 10-02, Amendment 39-155508 (73 FR 24168, May 2, 2008), which applies to certain Cessna 172, 175, 180, 182, 185, 206, 207, 208, 210, and 303 series airplanes.
These ADs require inspecting the alternate static air source selector valve to determine if the P/N identification placard obstructs the alternate static air source selector valve port and removing the placard if obstruction is found. These ADs also require reporting to the FAA if obstruction is found.
These assemblies are required for flight into instrument flight rules (IFR) conditions as defined in Sec. 91.411 of the Federal Aviation Regulations (14 CFR 91.411). Use of these assemblies is optional in visual flight rules (VFR) conditions.
After issuing AD 98-01-01 and AD 2008-10-02, we received reports of 15 airplanes not previously affected by either AD with a P/N 2013142-18 installed and the alternate static air source selector valve port was found obstructed by the P/N identification placard.
We have been informed that all P/N 2013142-18 alternate static air source selector valves shipped from Cessna Parts Distribution between January 1, 1993, and March 31, 2008, may have port obstruction caused by the P/N identification placard.
This condition, if not corrected, could result in the altimeter, airspeed, and vertical speed indicators displaying erroneous indications. This could cause the pilot to react to incorrect flight information and possibly result in loss of control.

Relevant Service Information

We reviewed Cessna Single Engine Service Bulletin, SB08-34-02, Revision 1, and Cessna Caravan Service Bulletin CAB08-4, Revision 1, both dated October 6, 2008; Cessna Single Engine Service Bulletin SEB08-5 and Cessna Multi-engine Service Bulletin MEB08-6, both dated October 13, 2008.
The service information describes procedures for inspecting the alternate static air source selector valve to assure that the P/N identification placard does not obstruct the alternate static air source selector valve port.

FAA's Determination and Requirements of This AD

We are issuing this AD because we evaluated all the information and determined the unsafe condition described previously is likely to exist or develop on other products of the same type design. This AD requires inspecting the alternate static air source selector valve to assure that the P/N identification placard does not obstruct the alternate static air source selector valve port. If the P/N identification placard obstructs the port, this AD requires you to remove the placard, assure that the port is unobstructed, and report to the FAA if obstruction is found.

FAA's Determination of the Effective Date

Since an unsafe condition exists that requires the immediate adoption of this AD, we determined that notice and opportunity for public comment before issuing this AD are impracticable, and that good cause exists for making this amendment effective in fewer than 30 days.

Comments Invited

This AD is a final rule that involves requirements affecting flight safety, and we did not precede it by notice and an opportunity for public comment. We invite you to send any written relevant data, views, or arguments regarding this AD. Send your comments to an address listed under the ADDRESSES section. Include the docket number ``FAA-2008-1328; Directorate Identifier 2008-CE-066-AD'' at the beginning of your comments. We specifically invite comments on the overall regulatory, economic, environmental, and energy aspects of the AD. We will consider all comments received by the closing date and may amend the AD in light of those comments.
We will post all comments we receive, without change, to http:// www.regulations.gov, including any personal information you provide. We will also post a report summarizing each substantive verbal contact we receive concerning this AD.

Authority for This Rulemaking

Title 49 of the United States Code specifies the FAA's authority to issue rules on aviation safety. Subtitle I, Section 106, describes the authority of the FAA Administrator. Subtitle VII, Aviation Programs, describes in more detail the scope of the Agency's authority.
We are issuing this rulemaking under the authority described in Subtitle VII, Part A, Subpart III, Section 44701, ``General requirements.'' Under that section, Congress charges the FAA with promoting safe flight of civil aircraft in air commerce by prescribing regulations for practices, methods, and procedures the Administrator finds necessary for safety in air commerce. This regulation is within the scope of that authority because it addresses an unsafe condition that is likely to exist or develop on products identified in this rulemaking action.

Regulatory Findings

We determined that this AD will not have federalism implications under Executive Order 13132. This AD will not have a substantial direct effect on the States, on the relationship between the national government and the States, or on the distribution of power and responsibilities among the various levels of government.
For the reasons discussed above, I certify that this AD:
(1) Is not a ``significant regulatory action'' under Executive Order 12866;
(2) Is not a ``significant rule'' under DOT Regulatory Policies and Procedures (44 FR 11034, February 26, 1979); and
(3) Will not have a significant economic impact, positive or negative, on a substantial number of small entities under the criteria of the Regulatory Flexibility Act.
We prepared a regulatory evaluation of the estimated costs to comply with this AD and placed it in the AD docket.

Examining the AD Docket

You may examine the AD docket that contains the AD, the regulatory evaluation, any comments received, and other information on the Internet at http://www.regulations.gov; or in person at the Docket Management Facility between 9 a.m. and 5 p.m., Monday through Friday, except Federal holidays. The Docket Office (telephone (800) 647-5527) is located at the street address stated in the ADDRESSES section. Comments will be available in the AD docket shortly after receipt.

List of Subjects in 14 CFR Part 39

Air transportation, Aircraft, Aviation safety, Incorporation by reference, Safety.

Adoption of the Amendment

Accordingly, under the authority delegated to me by the Administrator, the FAA amends 14 CFR part 39 as follows:

PART 39--AIRWORTHINESS DIRECTIVES

1. The authority citation for part 39 continues to read as follows:

Authority: 49 U.S.C. 106(g), 40113, 44701.

Sec. 39.13 [Amended]

2. The FAA amends Sec. 39.13 by adding a new AD to read as follows:
